Medical Aluminum Die Casting Precision & Biocompatibility

Die cast aluminum refers to the manufacturing process used to form a part by injecting molten metal into a die under pressure. Aluminum alloy refers to the material itself—the specific blend of aluminum with elements such as silicon, copper, or magnesium. In practice, medical die cast parts are made by selecting an appropriate aluminum alloy, then producing the component through a controlled die casting process.

The best alloy depends on the part’s performance requirements, geometry, finishing needs, and downstream machining. Common die casting alloys include ADC12, A380, A384, LM24, and LM25. For medical and precision applications, alloy selection should consider dimensional stability, corrosion resistance, machinability, and compatibility with finishing processes such as anodising or electroless nickel plating.

Yes, aluminum die casting can be suitable for many medical device housings, enclosures, brackets, structural supports, and precision components when the design, alloy, and finishing process are properly specified. It is especially useful where repeatability, lightweight performance, and efficient production matter. Final suitability depends on the application, regulatory requirements, sterilization exposure, and any biocompatibility expectations for the finished part.

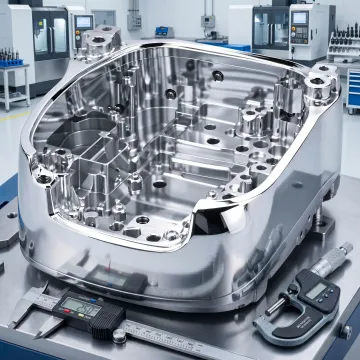

Marcus supports high-precision secondary machining with tolerances up to ±0.005mm on critical features such as mating faces, bearing bores, threaded interfaces, and sealing surfaces. This allows castings to be refined into production-ready components for demanding assemblies. Precision is maintained through datum-based fixturing, CAD-driven toolpaths, custom jigs, and in-process quality verification using advanced metrology systems.

Marcus offers in-house finishing options including anodising, electroless nickel plating, electroplating, bead blasting, vibro polishing, chromation, heat treatment, and other surface treatments. Parts undergo pre-treatment steps such as degreasing, acid cleaning, and conversion coating before finishing. Coated parts can also be tested to standards including ASTM B117 salt spray, XRF coating thickness, and adhesion cross-hatch requirements.

Yes, Marcus has a dedicated in-house Tool Room that supports die design, CAD/CAM integration, DFM review, simulation, rapid prototyping, T0 and T1 trials, preventive maintenance, and engineering changes. This helps identify manufacturability risks early, improve tool performance, and stabilize production before scale-up. It is especially valuable for medical programs where consistency and validation readiness are important.

Marcus operates under IATF 16949:2016 and ISO 9001 certified processes, supported by structured quality methods such as APQP, PPAP, FAIR, inline inspection, and advanced metrology including CMM. Batch certification is available on finished shipments for relevant processes. These systems help maintain repeatability, documentation, and process discipline across casting, machining, finishing, and assembly operations.

Yes, Marcus can support more than raw castings by combining die casting with CNC machining, surface finishing, mechanical assembly, and electro-mechanical assembly. This single-source approach helps reduce supplier handoffs, simplify quality coordination, and shorten overall lead times. Customers can receive finished or sub-assembled components that are packaged and prepared to their production and fulfillment requirements.
